UPS-PL12-36-120

Tycon Power Systems


Tycon Power UPS-PL12-36-120 | UPSPro 12V 36Ah Battery Backup System, 12V 20A PWM Charge Controller. 120/240VAC 12V 120W Battery Charger, Polycarbonate Enclosure



Product Highlights
  • • Weatherproof, UV resistant, outdoor enclosures
  • • Powered from AC mains power and/or Solar
  • • Interior space for customer electronics
  • • Wall or Pole Mounting
  • • Isolates Customer Equipment from Power Line Surges
  • Model#: UPS-PL12-36-120

    Sku: IT4627



    MSRP: $479.99

    In Stock

    Your Price: $479.99






    MODEL: UPS-PL12-36-120

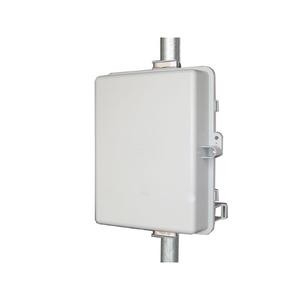

    The UPSPro® 120W series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling.

    There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure. Multiple configurations are available for 12V or 24V systems with various battery storage capacities.

    A typical 250mW wireless access point with average power consumption of 4W will run 24 hours on a 9Ah battery at room temperature or 16 hours at -20 deg C.

    • High Quality AGM Sealed Lead Acid Batteries

    • Advanced battery charge controller protects against overcharge and over discharge

    • Includes enclosure combo lock

    Applications

    • Wireless Base Stations and Clients

    • Surveillance Cameras

    • Wireless Bridge and Repeaters

    • Remote Sensors

    • Mission critical outdoor power

    • Backup Power Systems


    Datasheet

    PDF File Tycon Power UPS-PL12-36-120 | UPSPro 12V 36Ah Battery Backup System, 12V 20A PWM Charge Controller. 120/240VAC 12V 120W Battery Charger, Polycarbonate Enclosure
